- Stok Durumu: Stokta var
- Ürün Kodu: EK-Pro Manifold 2CPU 8GPU
- SKU: EK-Pro Manifold 2CPU 8GPU
- EAN: 3831109817209
- MPN: EK-Pro Manifold 2CPU 8GPU

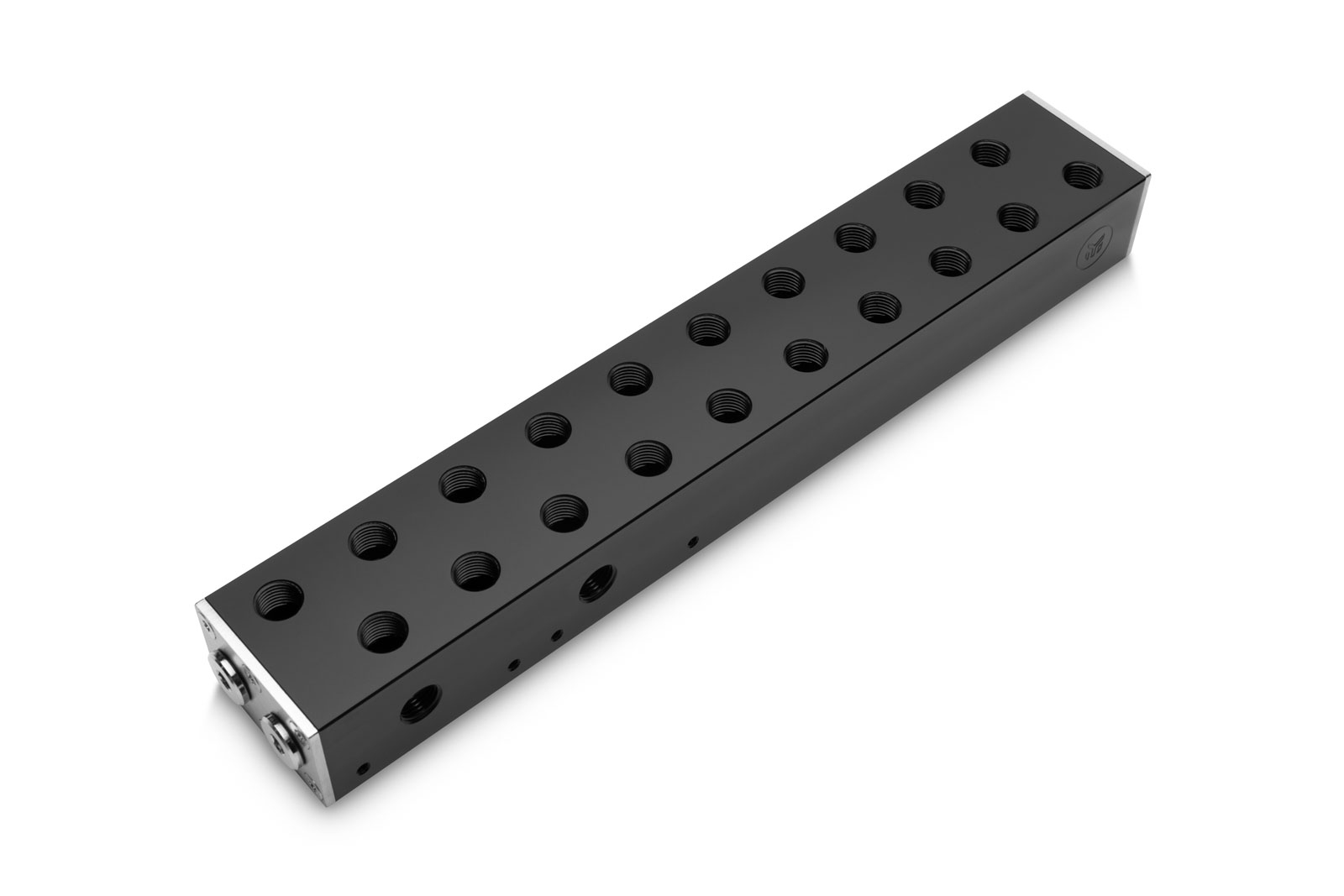

The EK-Pro Manifold is a purpose-made coolant delivery system for multiple water blocks in workstation systems. It offers perfect coolant distribution by using multiple industry-standard G1/4" In and Out ports. The EK-Pro Manifold 2CPU 8GPU can support two CPU and eight GPU water blocks in parallel or semi-parallel setups.
For best results, EK recommends using EK-Pro GPU Quick Disconnect and EK-Pro CPU Quick Disconnect Kits (sold separately) in combination with the EK-Pro Manifold. The manifold system, combined with the QDC kits, enables users to easily add or remove water blocks to the cooling loop without draining the entire loop. This avoids precious downtime for workstations and other professionally used computer setups.

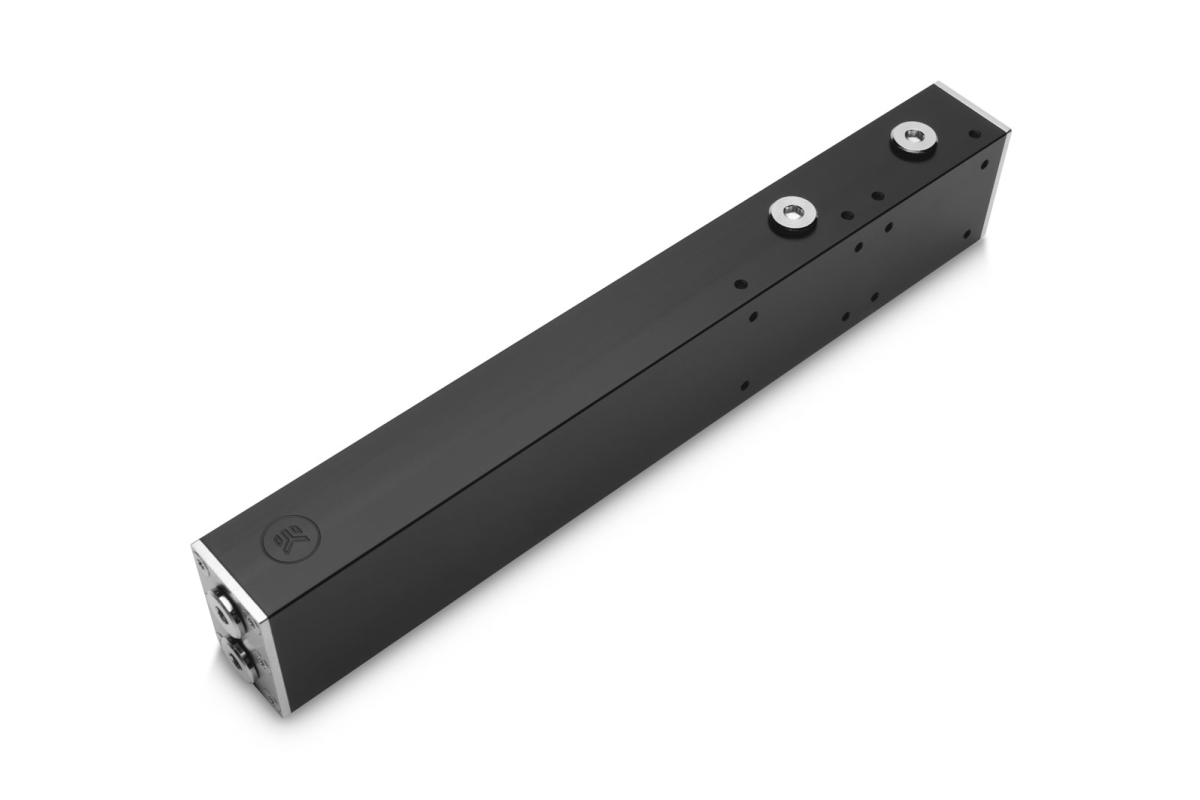

It features a full acetal body, stainless steel end caps, and nickel-plated brass plugs. Pre-assembled, out of the box, it can be used in a semi-parallel setup. Please follow the user manual for detailed information on connectivity options.

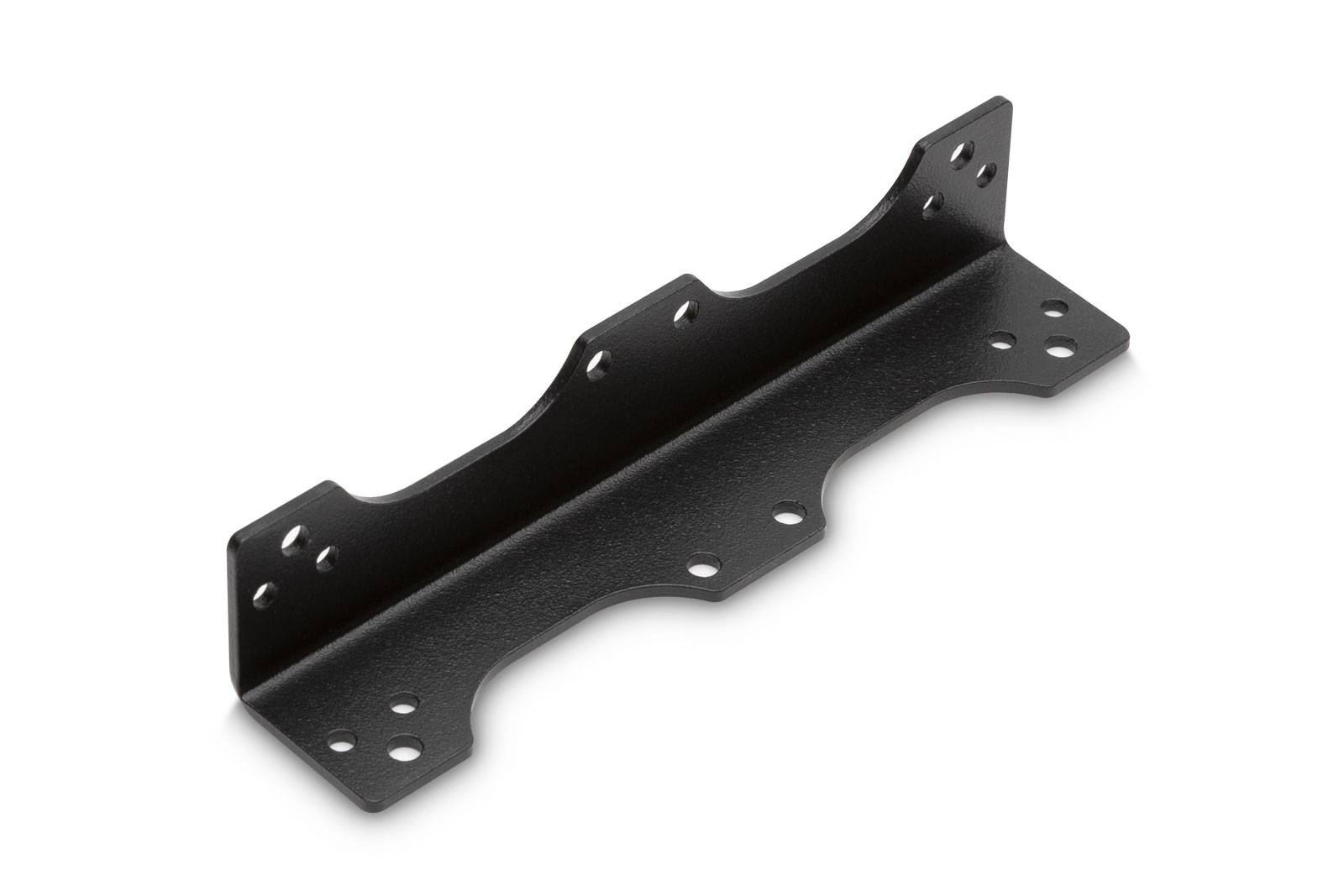

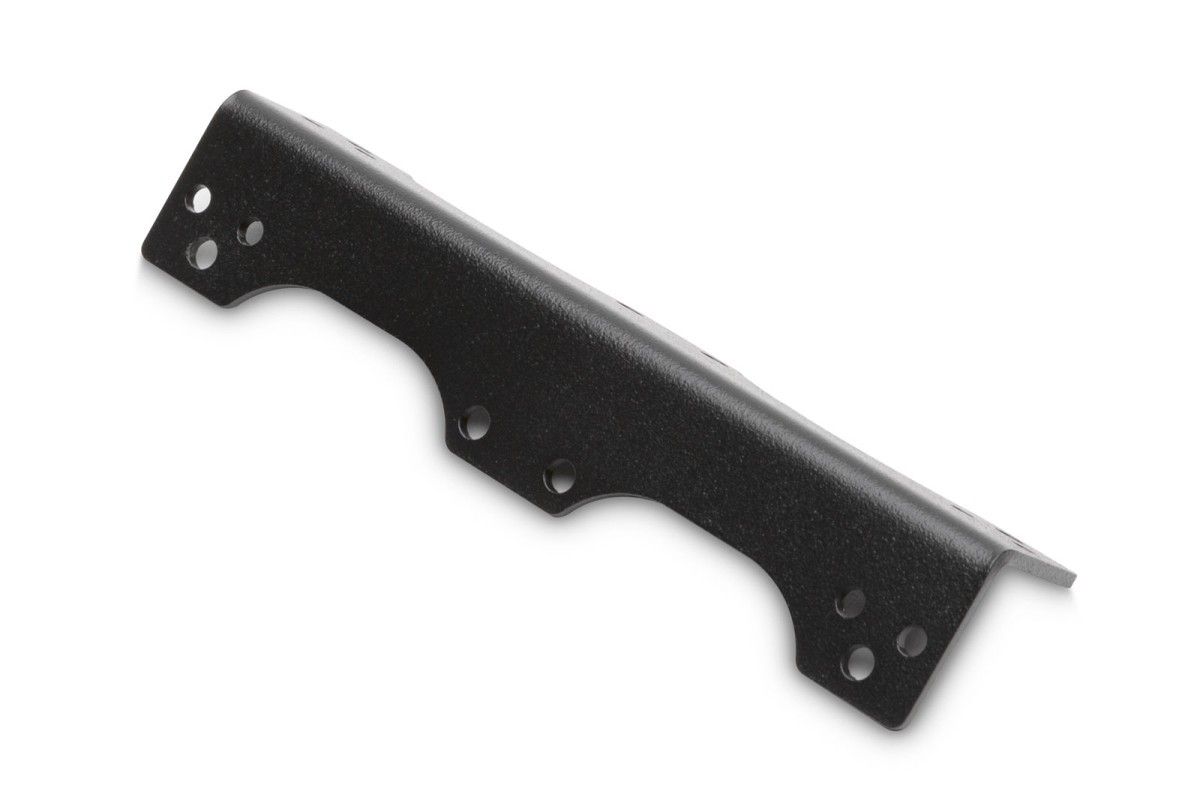

The EK-Pro Manifold is delivered with a universal mounting system that can be used in various scenarios. The steel mounting plate is equipped with 120 and 140mm fan mounting patterns, which can be found in all computer cases.
Please note that only seven G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. Spare G1/4 plugs are sold separately.
Technical Specifications:

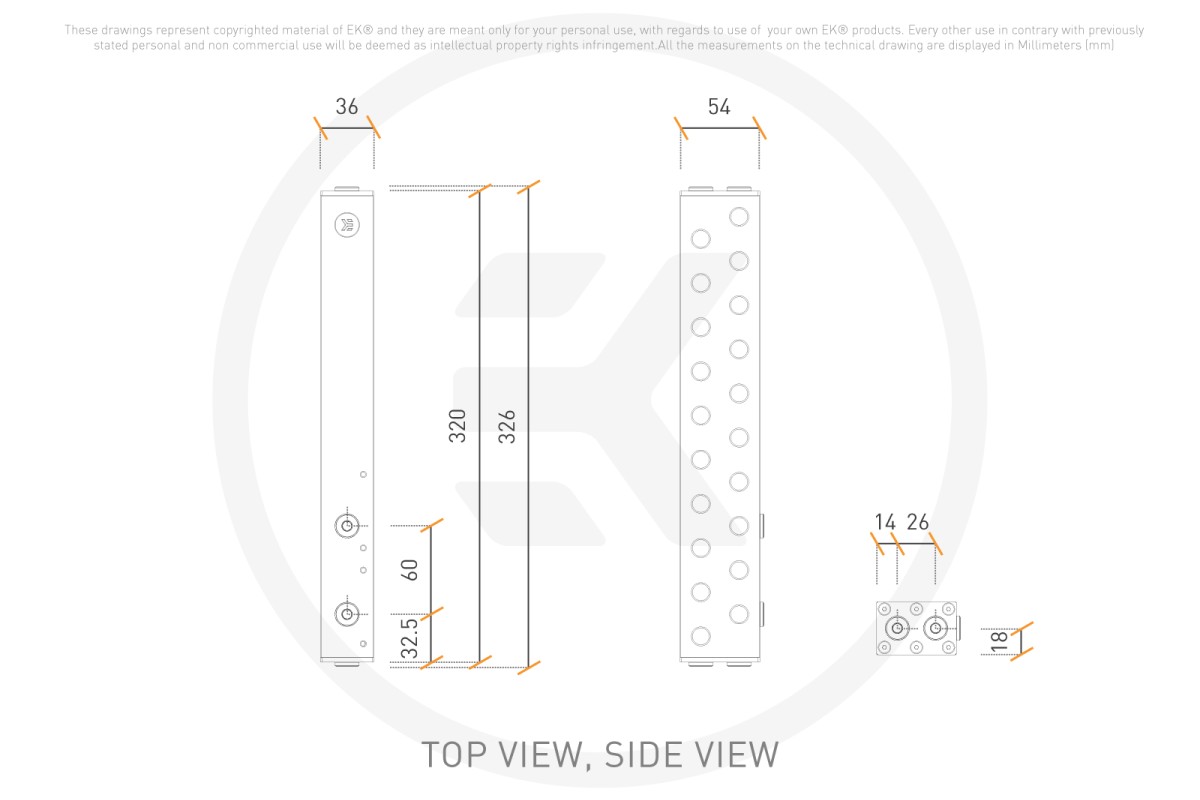

- Dimensions (L x H x W): 326 x 57 x 36 mm (without the mounting system)
- Materials: POM, stainless steel, nickel-plated brass
- Mass (kg): 0.873
- Ports: 20 x G1/4” – supports 2 x CPU and 8 x GPU water blocks
- Mounting method: Manifold mounting plate
- Working pressure: 2500 Pa
- Maximal working pressure: 30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
- Operating temperature range: 5 – 60 °C
Enclosed:
- EK-Pro Manifold unit
- G1/4 Plugs (7pcs)
- Allen key 6mm (1pc)
- Allen key 2,5mm (1pc)
- Manifold mounting (1pc)
- Screws M4 x 6mm DIN7984 (4pcs)
Made in Slovenia - EU!
- The manifold does not replace the role of the reservoir. A standalone reservoir is still recommended to be used.
- Please note that only seven G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. Spare G1/4 plugs are sold separately.
